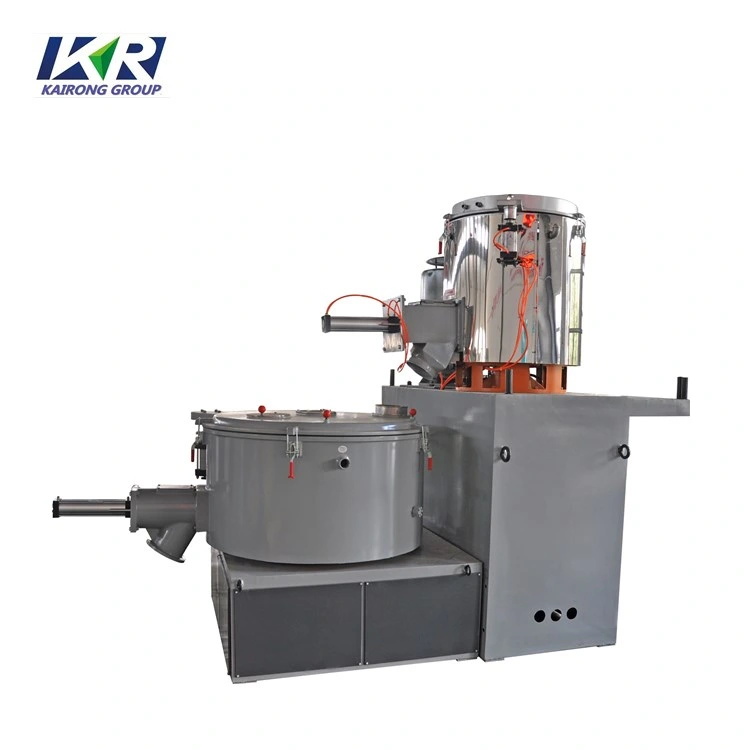

Plastic High Speed PVC Compound Mixer

ModelTotal volumeEffective volumePower of electrical machinery and heatingPrincipal axis rotary speedFigure dimension(L*W*H)mmHeating modeDischarging modeSHR-5A5L3L1.1KW1400rpm620*300*730self-frictiomhand workSHR-10A10L7L3KW2000rpm1200*300*830SHR-25A25L20L5.5KW1440rpm1200*350*850SHR-50A50L35L7/11/3KW750/1500rpm2100*700*1100

Featured Products

Plastic High Speed PVC Compound Mixer

Plastic High Speed PVC Compound Mixer
ModelTotal volumeEffective volume

Power of electrical

machinery and heating

Principal axis rotary speed

Figure dimension

(L*W*H)mm

Heating modeDischarging mode
SHR-5A5L3L1.1KW1400rpm620*300*730self-frictiomhand work
SHR-10A10L7L3KW2000rpm1200*300*830
SHR-25A25L20L5.5KW1440rpm1200*350*850
SHR-50A50L35L7/11/3KW750/1500rpm2100*700*1100electric or steampeneumatics
SHR-100A100L75L14/22/6KW650/1300rpm2100*800*1510
SHR-200A200L150L30/42/6KW475/950rpm2400*850*1580
SHR-300A300L225L40/55/9KW475/950rpm2000*1080*1680
SHR-500A500L375L47/67/12KW430/860rpm3060*1150*1880
SHR-800A800L600L83/110/15KW370/740rpm3385*1380*2750
SHR-1000A1000L750L110/160/28KW325/650rpm3460*1140*2900self-frictionpeneumatics
SHR-200C200L150L30/42KW650/1300rpm2545*900*1700
SHR-300C300L225L47/67KW475/950rpm2000*1080*1680
SHR-500C500L375L83/110KW500/1000rpm3060*1150*1880

Application & Features:
1. For plastics, rubber, daily chemical industry and laboratory materials mixing, stirring, dry blasting,
painting and other craft.
2. The pot cover has applied dual sealing.
3. self-friction, electric heating and various heating methods.
4. Discharge methods use automatic temperature control and manual control.
5. The blade is whole Stainless steel cast, and refined through the static and dynamic balance test.

Plastic High Speed PVC Compound Mixer
Plastic High Speed PVC Compound Mixer

FAQ
 1. Q: How about Haisi?
    R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What's Haisi capacity?
    R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.
3. Q: What's the delivery time?
    R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.
4. Q: Where is Haisi factory and how to reach there?
    R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
    R: Plz reply to me directly if you have any question.
