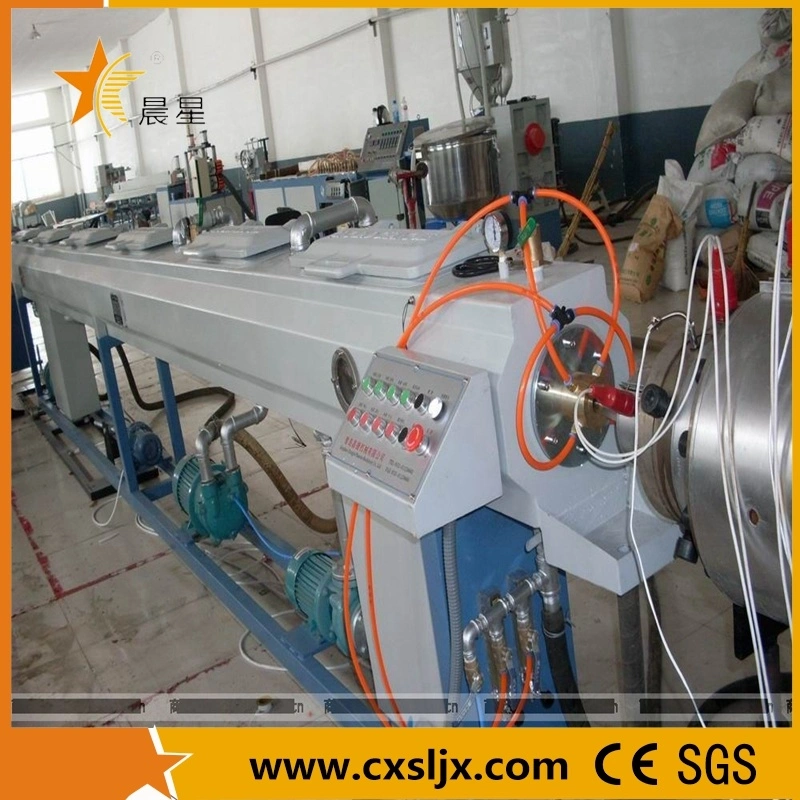

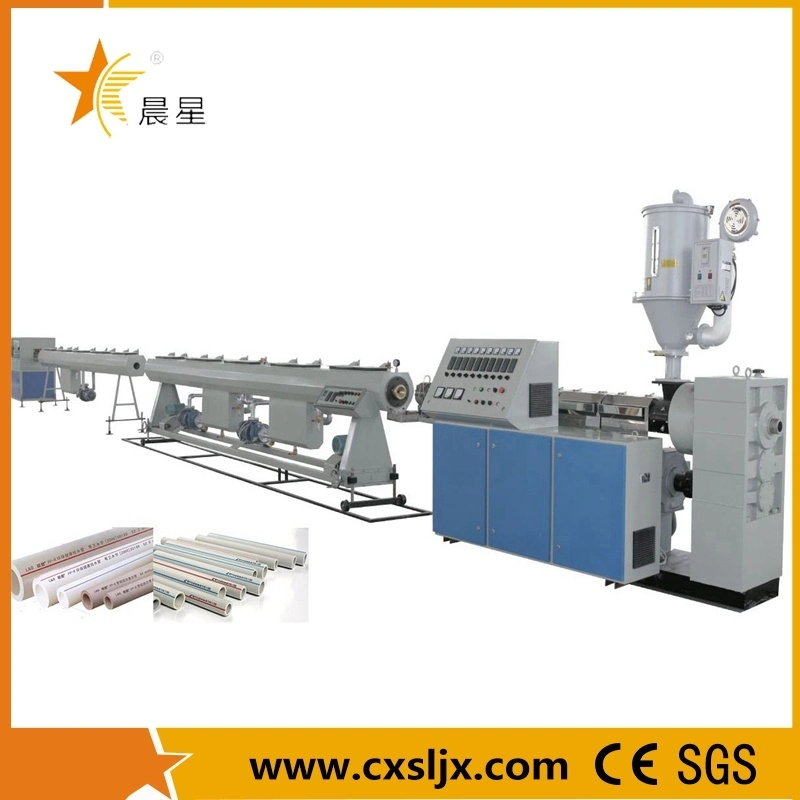

16- 63mm HDPE Pipe Extrusion Machine / PPR Pipe Production Line

Product Description: This plastic PPR pipe extrusion machinery adopts high efficiency single screw extruder, equipped with the PLC controlling system. It can ensure the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PP-R,

Featured Products

Product Description:

This plastic PPR pipe extrusion machinery adopts high efficiency single screw extruder, equipped with the PLC controlling system. It can ensure the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PP-R, PE-RT, PB pipe.
Application:

The line is mainly used for producing PP-R pipe also used for producing PE-RT, PB, and PE-X resin pipe

Feature:

1, The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.
2, Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.
3, Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

4, Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

SPECIFICATIONS FOR PP/PPR PIPE EXTRUSION LINE
Model
Pipe spec(mm)
Extruder
Max. Output
(kg/h)
Main motor power(KW)
GW63-PPR
Φ16-Φ63
GW65/33
120-200
104
GW110-PPR
Φ50-Φ110
GW65/33
150-200
146
GWG160-PPR
Φ75-Φ160
GW65/33
200-250
176
